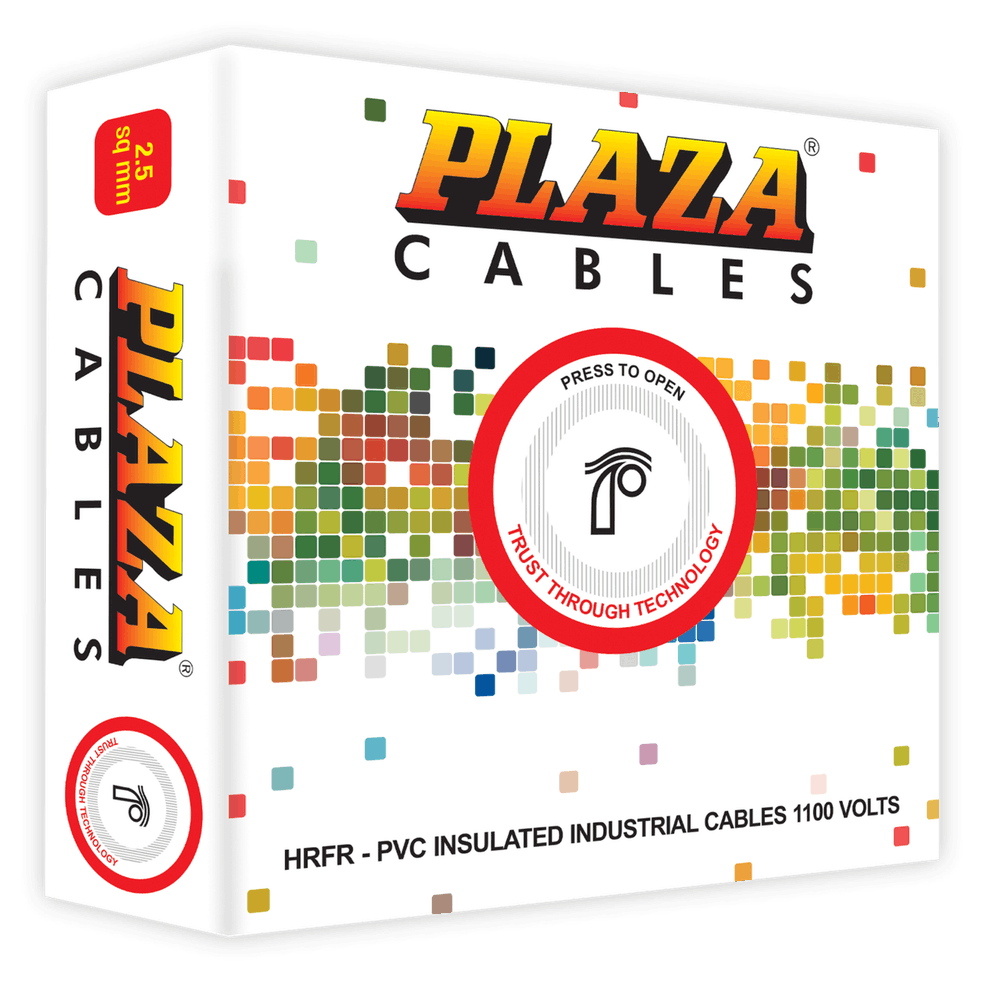

Heat Resistant and Flame Retardant (HRFR) Cables with Class-2 Conductor
Heat-resistant, flame-retardant cables with Class-2 strand conductors engineered for higher current capacity, thermal stability, and dependable power distribution in high-rises and electrical panels.
Heat Resistant and Flame Retardant (HRFR) Cables with Class-2 Conductor
Plaza HRFR Cables with Class-2 Conductors are where advanced conductivity meets uncompromising fire safety. Featuring high-quality annealed copper and triple-layer flame-retardant insulation, these cables are engineered to handle higher electrical loads while maintaining reliable, efficient power transmission. One of their standout advantages is their heat-resistant insulation rated up to 85°C - a clear step above ordinary PVC cables that are limited to 70°C - enabling higher current carrying capacity and better overall performance. Built to ISI standards at an ISO 9001, ISO 14001 & OHSAS 18001 certified plant, they are perfectly suited for internal wiring, electrical panels, and demanding high-rise installations. With Plaza HRFR Class-2 Cables, you're not just wiring a building - you're future-proofing it with safety and performance that stands the test of time.
Specifications
| STANDARDS | IS:694, IS: 8130, IS: 5831, IEC 60227, BS 6231, IEC: 332,-1, ASTM- 2863 |
|---|---|
| CONDUCTOR | Electrolytic Grade, bright annealed bare copper with more than 100% conductivity conforming to IS:8130 |
| INSULATION | HR-FR (Heat Resistant Flame Retardant) insulation means the cable insulation can withstand higher temperatures (around 85°C) than standard PVC (70°C), carries higher loads safely, and crucially, slows or stops fire spread by self-extinguishing and producing less smoke/toxic fumes, making it ideal for high-rise buildings, hospitals, and commercial complexes for enhanced safety. |
| COLORS | Plaza coils are available in Red, Yellow, Blue, Black, White and Green. Special colors available on request. |
| MARKING | As per IS: 694 specifications with special marking HR-FR |
| TESTING | All plaza wires are tested as per IS:694, IS: 8130, IS: 5831, IEC 60227, BS 6231, IEC: 332,-1, ASTM- 2863 |
| PACKING | Multistrand wires of up to 10 mm² are available in standard carton packing of 90 meters & in poly packing of 200 meters. Longer lengths are available on request. |
- Preferred for better energy savings due to lower resistance and reduced heat generation.
- Essential for hotels, hospitals, banks and factories
- High-rise buildings where fire safety is critical.
- House wiring for internal electrification and powering appliances in high-density wiring setups.
- Internal wiring within walls, ceilings, and switchboards.
- For fixed connections within electrical distribution boards.
- Triple-layer insulation for enhanced safety
- 99.97% pure copper with high conductivity (102% IACS)
- Heat-resistant up to higher operating temperatures 85°C, flame-retardant (HR-FR)
- Low conductor resistance and high discoloration resistance
- Resists fire propagation, minimizing spread in case of ignition.
- Lead free PVC
- RoHS compliant
- REACH compliant
- Rodent protection
- High durability
TECHNICAL DETAILS
