TV Dish Antenna Co-axial Cables (Gas injected physical foam jelly flooded industrial cables)
High-performance coaxial cables featuring advanced shielding and low-loss insulation to ensure clear, interference-free HD video signal transmission for DTH, satellite TV, and CATV networks.

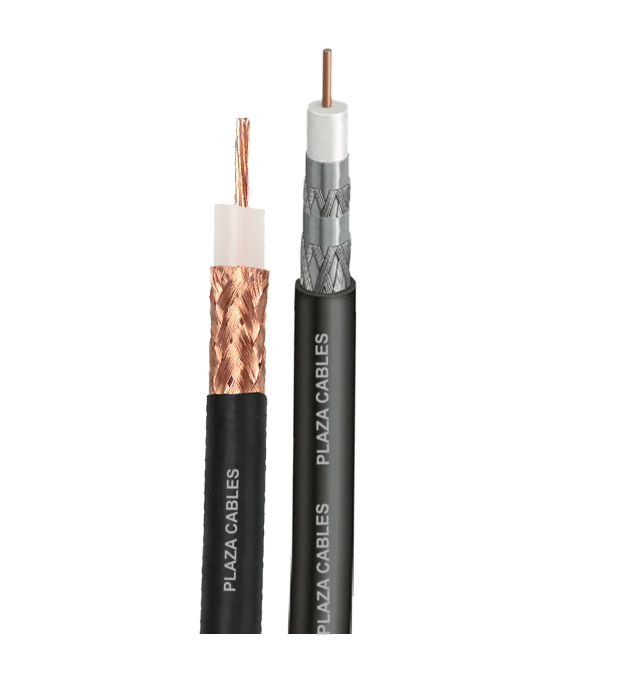

TV Dish Antenna Co-axial Cables (Gas injected physical foam jelly flooded industrial cables)
When it comes to crystal-clear picture quality and uninterrupted signal delivery, Plaza TV Dish Antenna Co-axial Cables are the connection you can count on. Engineered with advanced shielding and low-loss insulation, these cables are built to carry high-bandwidth video signals with minimal interference and virtually no signal degradation. Whether you're setting up a DTH system at home, connecting a satellite receiver, or running a multi-channel CATV network, Plaza coaxial cables ensure every frame reaches your screen exactly as intended. Trusted for HD video transmission and compatible with TVs, DVRs, and institutional broadcasting setups, these cables combine superior technical performance with lasting durability - because your viewing experience deserves nothing less than the best signal quality possible.
Specifications
| RANGE | RG-59, RG-6, RG-11 |
|---|---|
| CONDUCTOR | A coaxial cable has a solid copper or copper-clad-steel center conductor surrounded by a non-conducive Di-Electric insulating material. |
| INSULATION | The dielectric is surrounded by foil shield/s and/or copper braids which form the outer conductor and also shield against electromagnetic interference (EMI). The outer conductor/shield is encased in a PVC jacket. |
| COLOR | BLACK |
| MARKING | PLAZA CABLES RG-6 CCS750 CO-AXIAL CABLES |
| PACKING | Supplied in 100 mtrs. & 300 mtrs, in attractive cartons with non-returnable wooden drum. |
- Used for transmission of video and audio signals.
- Widely used in the DTH and CATV industry.
- Suitable for handling an increasing number of CATV channels.
- Ideal for multi-channel signal transmission applications
- Braided metal shield blocks external noise, preventing signal interference.
- Enables transmission over longer distances without needing frequent repeaters
- Low attenuation, rugged design
- 100 m carton / 305 m easy-pull box
- Analog & digital ready
- RoHS compliant
- REACH compliant

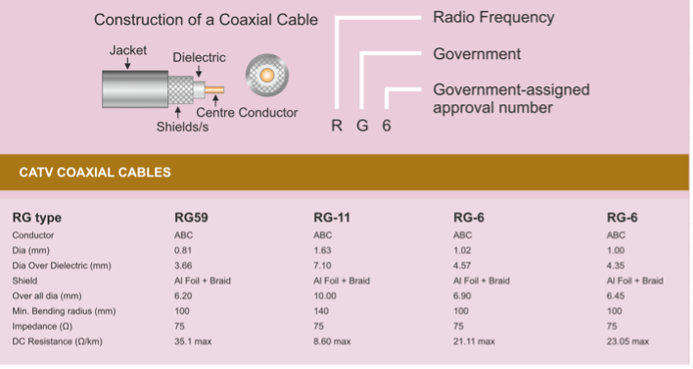

TECHNICAL DETAILS
